Vintage Powerful Roentgen X - Ray Tube 0, 4BPM2 - 120 For Radiography Materials NOS
Item History & Price
| Reference Number: Avaluer:669779 | Type: NOS Tube |
| Featured Refinements: X-Ray Tube | MPN: Does Not Apply |
| UPC: Does not apply |

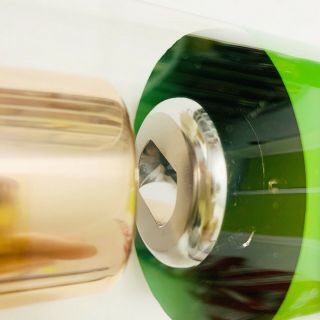

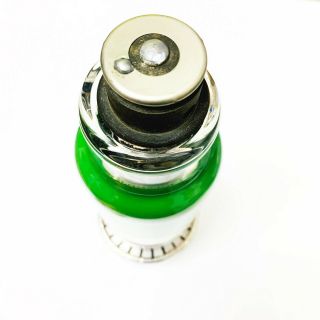

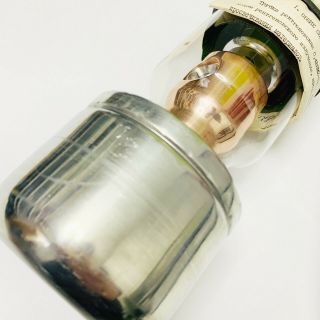

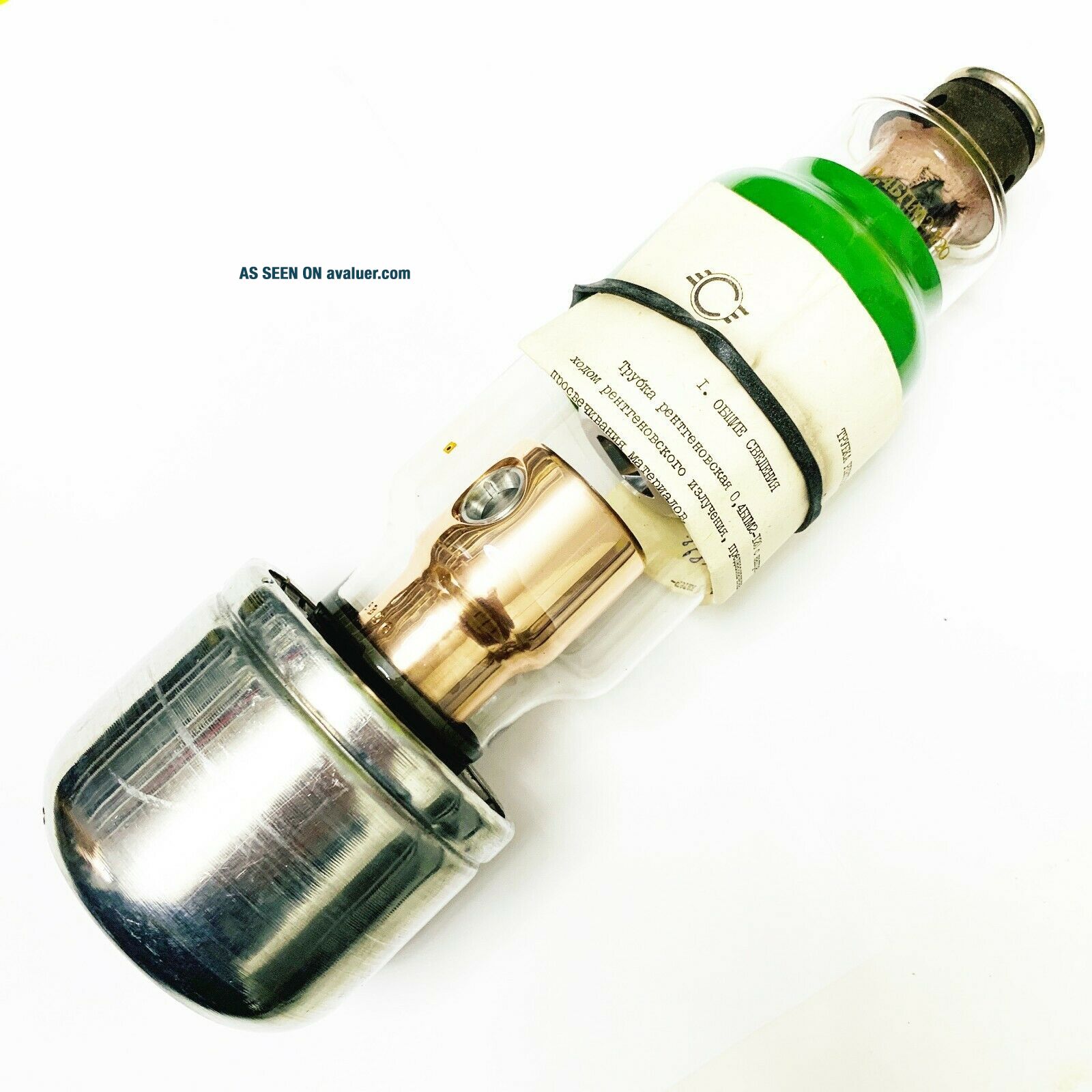

X-ray tube 0, 4BPM2-120 with a directed side exit of x-ray radiation, intended for industrial radiography of materials
The filament parameters at a tube voltage of 50 kV, tube current 3 mA:heating current, A - not more than 4.5 (test data 4.0)filament voltage, V - not more than 4.8 (test data 4.2)The parameters of the heat when the voltage of the tube is 120 kV, the current of the tube is 5 mA:heating current, A - not less than 3.5 (test data 3.9)heating voltage, V - not less than 3....6 (test data 3.8)The size of the focal spot, width, mm - 1.9 (+0.6)Solution angle of the working X-ray beam, degree - not less than 40X-ray exposure dose rate, µA / kg (R / min) - not less than 60.2 (14) at a tube voltage of 120 kV, a tube current of 5 mA at a distance of 500 mm from the actual focal spot of the tube)
The filament parameters at a tube voltage of 50 kV, tube current 3 mA:heating current, A - not more than 4.5 (test data 4.0)filament voltage, V - not more than 4.8 (test data 4.2)The parameters of the heat when the voltage of the tube is 120 kV, the current of the tube is 5 mA:heating current, A - not less than 3.5 (test data 3.9)heating voltage, V - not less than 3....6 (test data 3.8)The size of the focal spot, width, mm - 1.9 (+0.6)Solution angle of the working X-ray beam, degree - not less than 40X-ray exposure dose rate, µA / kg (R / min) - not less than 60.2 (14) at a tube voltage of 120 kV, a tube current of 5 mA at a distance of 500 mm from the actual focal spot of the tube)
